HDM’s Inverter and Inverter/Chargers

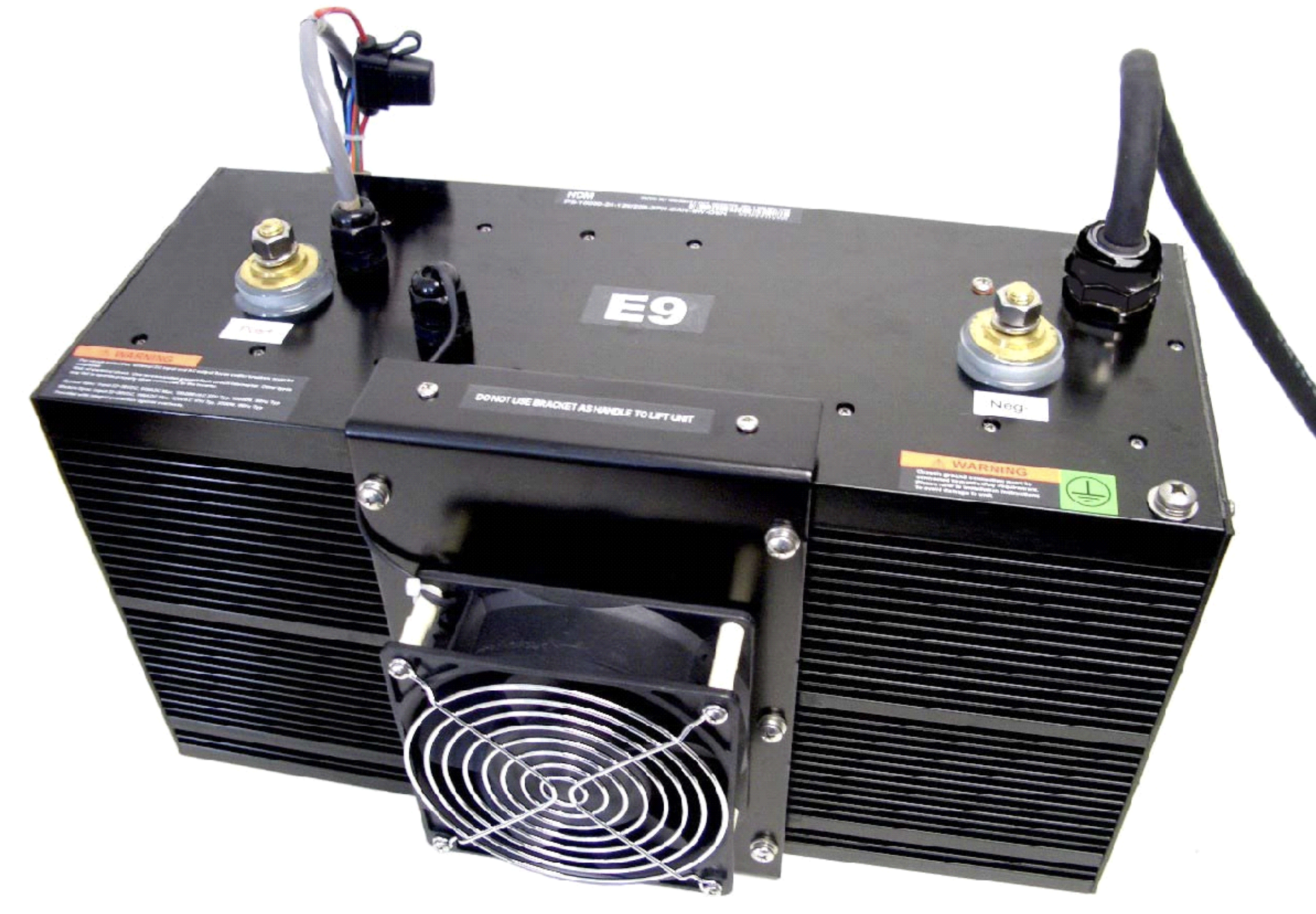

Pure Sine-Wave Inverter System - PS10KEEPK

HDM’s PS10KEEPK Pure Sine-Wave Inverter system is designed for your complex electrical and frequency-sensitive equipment. It provides up to 10,000W of continuous AC power for mobile and stationary applications, such as satellite communication equipment, digital surveillance cameras, portable computers, and emergency medical equipment. The PS10KEEPK inverter system’s compact and ruggedized design ensures clean and low-distortion AC power at sea and on the road.

• 10,000W continuous output with 2x surge power

• Pure sine-wave output – THD <3%

• 24VDC input – wide operating range

• 120/120/240VAC outputs – up to 5,000W (L-N) or 10,000W (L-L)

• Automatic circuit protection – electrical and environmental

• LED indicators with on/off control for night-mode

• Sealed and vibration-proof construction – IP66 rated

• CAN-Bus communication protocol

• External waterproof cooling fans

Pure Sine-Wave Inverter - PS-2000-24-120-CAN

HDM’s PS-2000-24-120 Pure Sine-Wave Inverter supports complex electrical applications and frequency-sensitive equipment, providing up to 2,000W of continuous AC power. It’s ideally suited for mobile military, commercial, and industrial operators.

• Available up to 10,000W (24VDC version) continuous power

• Pure sine-wave output – THD <3%

• Available in 24VDC for both 120VAC/60Hz & 220VAC/50Hz

• Parallel capability for optimized load sharing – Up to 12,000W

• 3-Phase 120/208VAC configurable – Up to 10,000W

• Automatic circuit protection – electrical and environmental

• LED status indicators with a diagnostic scheme

• Sealed and vibration-proof construction

• CAN-Bus or RS232 available

Modified Sine-Wave Inverter - INMSW600B-24/115 Inverter and INMSW600B-24/220 Inverter

HDM’s Modified Sine-Wave Inverter provides 600 watts of voltage and frequency-regulated AC power from a deep-cycle battery bank. A low battery output and up to 1200W of surge power is ideal for starting electric motors. High efficiency ensures the longest possible battery life between recharges.

• Available up to 3000W continuous (24VDC) modified sine wave inverter

• High surge capability, power density, and efficiency

• Compact and lightweight

• Economical choice

PURE SINE-WAVE INVERTER - PS-3000-12-120

HDM’s PS-3000-12-120 Pure Sine-Wave Inverter provides a superior AC source for your complex electrical and frequency-sensitive equipment. It provides up to 3,000W of continuous AC power for mobile and stationary applications such as satellite communication equipment, digital surveillance cameras, portable computers, and emergency medical equipment. With its compact and ruggedized design, the PS-3000-12-120 inverter will ensure clean and low-distortion AC power at sea and on the road.

• Pure sine-wave output – THD <3%

• Available in 12VDC for both 120VAC/60Hz & 220VAC/50Hz

• Automatic circuit protection – electrical and environmental

• LED status indicators with a diagnostic scheme

• Sealed and vibration-proof construction

Applicable Performance Requirements

• Ruggedization For SAE J1455 Chassis Mount Components

• Compliancy For ISO 7637-2 Electrical Transient

PURE SINE-WAVE INVERTER - PS-3000-24-120

HDM’s PS-3000-24-120 Pure Sine-Wave Inverter provides a superior AC source for your complex electrical and frequency-sensitive equipment. It provides up to 3,000W of continuous AC power for mobile and stationary applications such as satellite communication equipment, digital surveillance cameras, portable computers, and emergency medical equipment. With its compact and ruggedized design, the PS-3000-24-120 inverter will ensure clean and low-distortion AC power at sea and on the road.

• AC Output Power 3,000W

• AC Output Surge Rating 6,000W for 1 Second

• Pure sine-wave output – THD <3%

• Sleep Mode to Minimize Idling Drain Current (0.1ADC vs 2~3ADC)

• Multi-Staged Output Short Circuit Protection

• Sealed and vibration-proof construction

Applicable Performance Requirements

• IP65 Rating

• Ruggedization for MIL-STD-810F/G

• Compliancy for MIL-STD-1275D, +40Vpk/50mS

PURE SINE-WAVE INVERTER - PS-5000-24-120

HDM’s PS-5000-24-120 Pure Sine-Wave Inverter provides a superior AC source for your complex electrical and frequency-sensitive equipment. It provides up to 5,000W of continuous AC power for mobile and stationary applications such as satellite communication equipment, digital surveillance cameras, portable computers, and emergency medical equipment. With its compact and ruggedized design, the PS-5000-24-120 inverter will ensure clean and low-distortion AC power at sea and on the road.

• AC Output Power – 5,000W

• AC Output Surge Rating – 10,000W for 1 Second

• Pure sine-wave output – THD <3%

• Sleep Mode to Minimize Idling Drain Current (0.2ADCvs 3~4ADC)

• Multi-Staged Output Short Circuit Protection

Applicable Performance Requirements

• IP65 Rating

• Ruggedization for MIL-STD-810F/G

• Compliancy for MIL-STD-1275D, +40Vpk/50mS

VISTER Inverter/Charger - HIC-2000-12-120-50A

HDM’s VISTER HIC-2000-12-120-50A Inverter/Charger is your complete power supply system on the road. It converts 12-volt DC power into 120-volt AC power to run onboard appliances and electronics, then rapidly and cleanly charges your batteries when docked. HDM’s patented pulse charging technology extends battery life and reduces battery charge time, while the inverter’s high surge capacity handles demanding loads. An automatic transfer switch allows the power source to shift seamlessly between the batteries and shore power. Watertight and economical, the VISTER HIC-2000-12-120-50A inverter/charger is a cleaner alternative to the APU and other diesel-based power systems.

• Available up to 3000W continuous (12VDC) modified sine wave inverter

• High surge capability - Up to 3x rated power

• Available up to 750W multi-stage AC charger with pulse charging technology

• Available in 12VDC for both 120VAC/60Hz & 220VAC/50Hz

• Automatic circuit protection – electrical and environmental

• LED status indicators with a diagnostic scheme

• Built-in automatic transfer switch

• Sealed and vibration-proof construction
